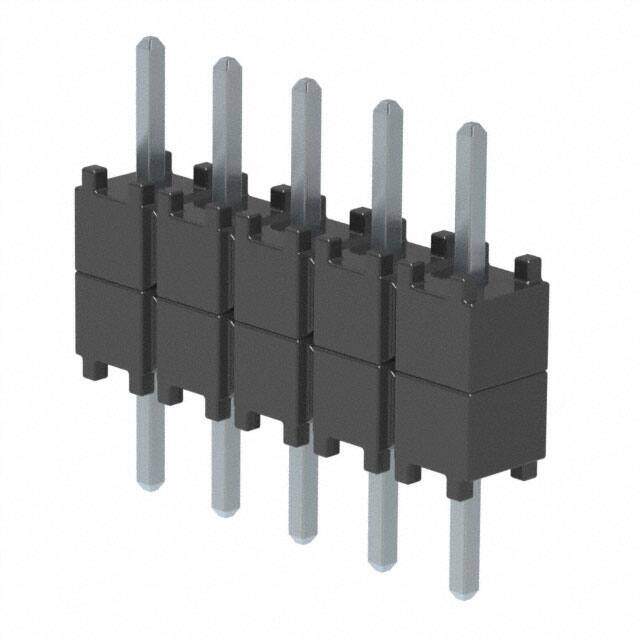

DW-05-07-T-S-200 image
Favorite
DW-05-07-T-S-200 image
Favorite

DW-05-07-T-S-200

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description Conn Board Stacker HDR 5 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.4708
≥100 USD $0.388432
≥500 USD $0.337744
≥1000 USD $0.278643
≥3000 USD $0.244869
Inventory: 1736
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material PHOSPHOR BRONZE
Mount Through Hole
Mounting Type Through Hole

Technical

Packaging Bulk
Published 2013
Series Flex Stack, DW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type BOARD STACKING CONNECTOR
Number of Positions 5
Color Black
Number of Rows 1
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 5
UL Flammability Code 94V-0
Contact Finish - Post (Mating) Tin

Dimensions

Length - Stack Height 0.200 5.080mm
Length - Overall Pin 0.430 10.922mm
Length - Post (Mating) 0.120 3.048mm
Length - Tail 0.110 2.794mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
