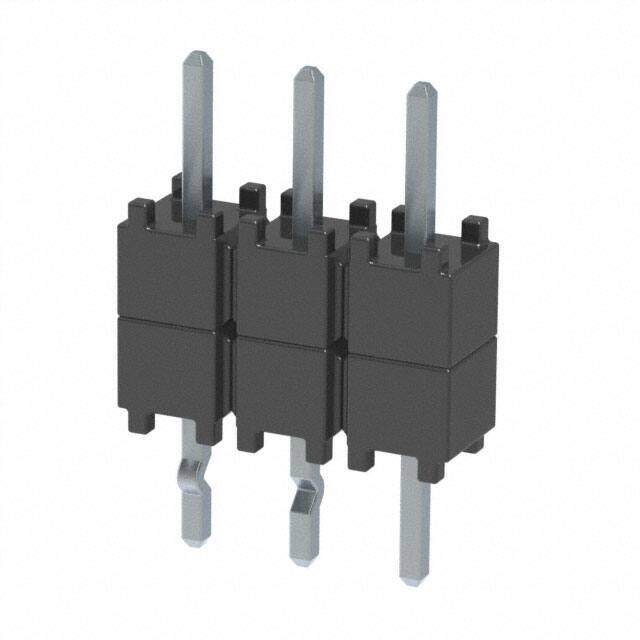

DW-03-07-T-S-200-LL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 3 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 5227
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mount Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Series Flex Stack, DW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type BOARD STACKING CONNECTOR
Number of Positions 3
Color Black
Number of Rows 1
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 3
Contact Finish - Post (Mating) Tin
Dimensions
Length - Stack Height 0.200 5.080mm
Length - Overall Pin 0.430 10.922mm
Length - Post (Mating) 0.120 3.048mm
Length - Tail 0.110 2.794mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
