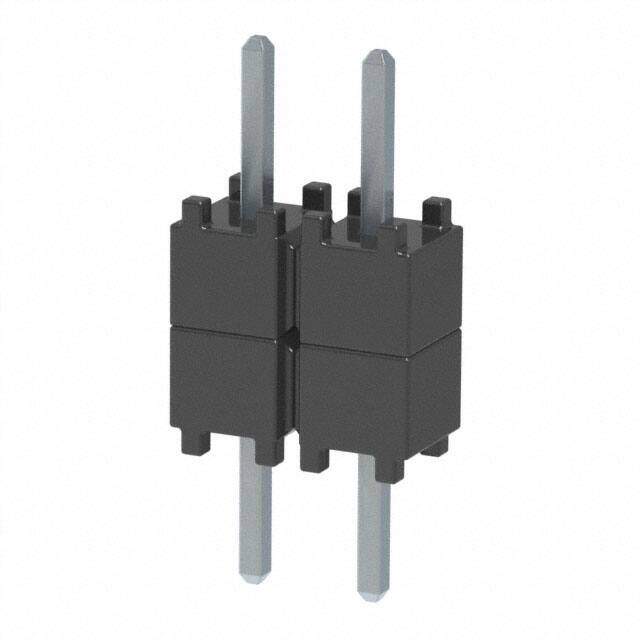

DW-02-07-T-S-200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Conn Board Stacker HDR 2 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.2244
≥100 USD $0.17424
≥500 USD $0.149318
≥1000 USD $0.124432
≥3000 USD $0.106656
Inventory: 240
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyester
Technical
Packaging Bulk
Published 2011
Series Flex Stack, DW
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type BOARD STACKING CONNECTOR
Number of Positions 2
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 1
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 2
Orientation Straight
Depth 2.54mm
UL Flammability Code 94V-0
Contact Finish - Post (Mating) Tin
Max Current Rating 3A
Dimensions
Length 5.08mm
Length - Stack Height 0.200 5.080mm
Length - Overall Pin 0.430 10.922mm
Length - Post (Mating) 0.120 3.048mm
Length - Tail 0.110 2.794mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
