M22-2660505
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description

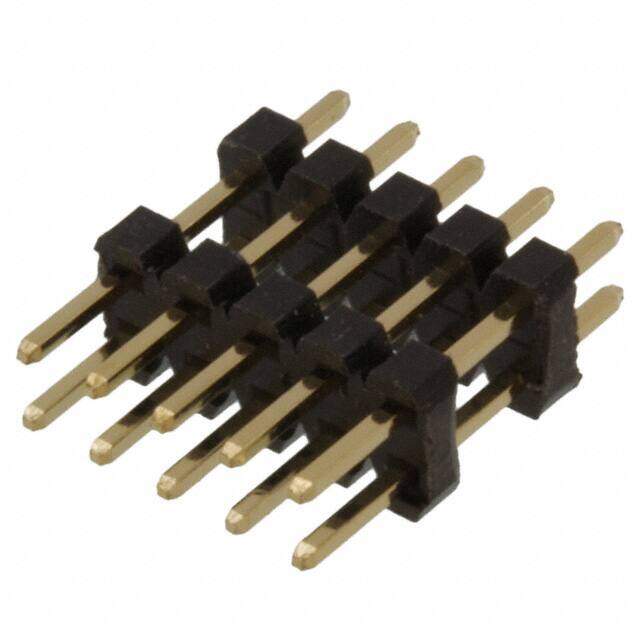

Headers & Wire Housings 5+5 PIN DIL EXTENDED VERT GOLD PIN HEADER
PDF
/
Inventory: 8680
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Current Rating 1A
Orientation Straight
Total Number of Contacts 10
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature ROHS COMPLIANT
Voltage - Rated 650V
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type BOARD STACKING CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series M22
Published 2013
Packaging Bulk
Contact Pattern RECTANGULAR
Durability 300 Cycles
Body/Shell Style PLUG
Row Spacing 0.079 (2.00mm)
Contact Style SQ PIN-SKT
Contact Finish - Post (Mating) Gold
Rated Current (Signal) 1A
UL Flammability Code 94V-0
Contact Gender MALE
Body Breadth 0.157 inch
Physical
Housing Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Bronze
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Tail 0.094 2.400mm
Length - Post (Mating) 0.138 3.500mm
Length - Overall Pin 0.469 11.900mm
Length - Stack Height 0.236 6.000mm
Length 11.9126mm
