M20-9600545
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description

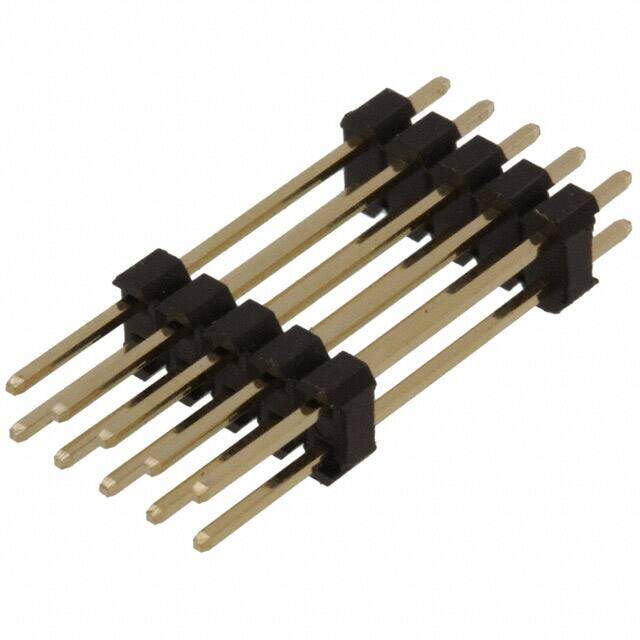

Headers & Wire Housings 05+05 DIL EXTENDED PIN HEADER GOLD HT
PDF
/
Inventory: 8828
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material BRASS
Mount Through Hole
Mounting Type Through Hole
Housing Material Nylon
Weight 1.325g
Technical
Packaging Bulk
Published 2009
Series M20
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type BOARD CONNECTOR
Number of Positions 10
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 750V
Additional Feature ROHS COMPLIANT
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 10
Orientation Straight
Current Rating 3A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.661 inch
Rated Current (Signal) 3A
Contact Finish - Post (Mating) Gold
Contact Style SQ PIN-SKT
Row Spacing 0.100 (2.54mm)
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 750VAC V
Durability 300 Cycles
Contact Pattern RECTANGULAR
Dimensions
Length 27.0002mm
Length - Stack Height 0.661 16.800mm
Length - Overall Pin 1.063 27.000mm
Length - Post (Mating) 0.283 7.200mm
Length - Tail 0.118 3.000mm
Compliance
RoHS Status ROHS3 Compliant
