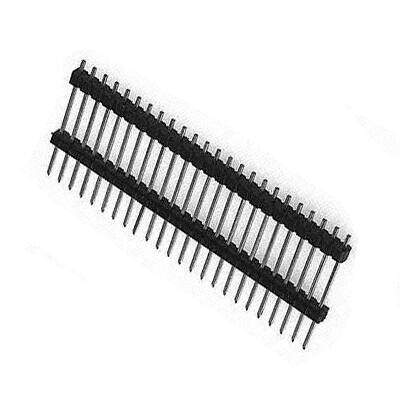

926582-01-36-I image
Favorite
926582-01-36-I image
Favorite

926582-01-36-I

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description CONN HEADER 72POS DL .100 GOLD
PDF
/
Inventory: 6844
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length - Tail 0.465 11.800mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Post (Mating) 0.100 2.540mm
Length - Overall Pin 0.965 24.500mm
Length - Stack Height 0.400 10.160mm
Length 24.511mm

Technical

Row Spacing 0.100 (2.54mm)
Contact Finish - Post (Mating) Gold
Current Rating 2.5A
Pitch 0.100 2.54mm
Gender Male
Number of Rows 2
Color Black
Number of Positions 72
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 929
Published 2004
Packaging Bulk

Physical

Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold

Supply Chain

Factory Lead Time 3 Weeks
