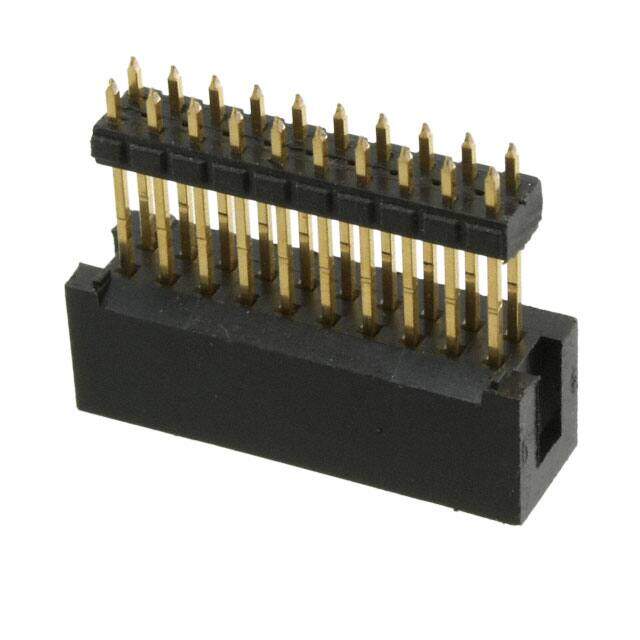

924327-28-10-I
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description
Headers & Wire Housings 20P SHRUNK SHROUD
PDF
/
Inventory: 5248
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Length - Overall Pin 0.860 21.844mm
Length - Post (Mating) 0.218 5.537mm
Contact Finish Thickness - Post (Mating) 10.0μin 0.25μm
Length - Tail 0.110 2.800mm
Length - Stack Height 0.500 12.700mm
Length 21.844mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Technical
Row Spacing 0.100 (2.54mm)
Contact Finish - Post (Mating) Gold
Pitch 0.100 2.54mm
Number of Rows 2
Color Black
Number of Positions 20
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 929 (Shrouded)
Published 2007
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
