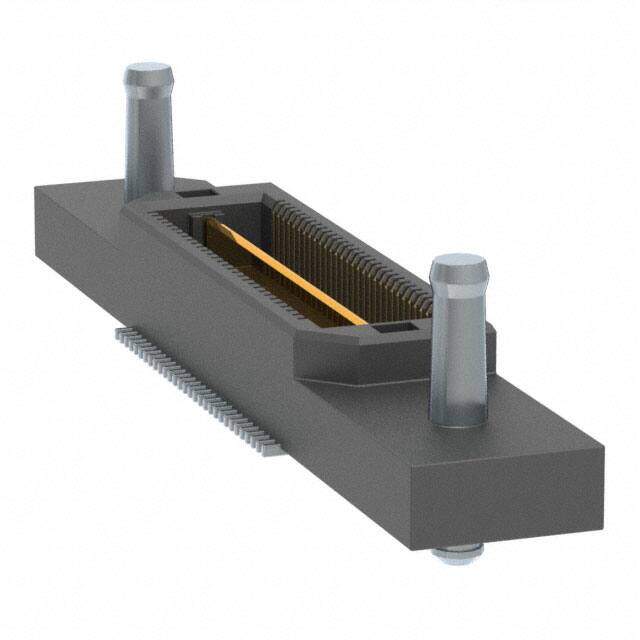

QTH-030-01-C-D-A-RT1 image
Favorite
QTH-030-01-C-D-A-RT1 image
Favorite

QTH-030-01-C-D-A-RT1

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description Rectangular Connector Array
PDF
/
Inventory: 4916
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Stack Height (Mating) 5mm
Height Above Board 0.160 4.06mm
Contact Finish Thickness 50.0μin 1.27μm
Length 36.52mm

Technical

Insulator Color BLACK
Contact Pattern RECTANGULAR
Max Voltage Rating (AC) 125V
Contact Style CENTRONIC
Rated Current (Signal) 2A
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Number of Conductors ONE
Depth 5.97mm
Orientation Straight
Total Number of Contacts 60
Pitch 0.020 0.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Gender Male
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 60
Connector Type Header, Outer Shroud Contacts
Termination Solder
Part Status Active
Pbfree Code yes
Feature Board Guide, Ground Bus (Plane), Mounting Flange
Series Q Strip? QTH
Published 2012
Packaging Bulk

Physical

Board Mounting Option PEG
Housing Material Polymer
Mounting Type Surface Mount
Contact Material Bronze

Supply Chain

Factory Lead Time 3 Weeks
