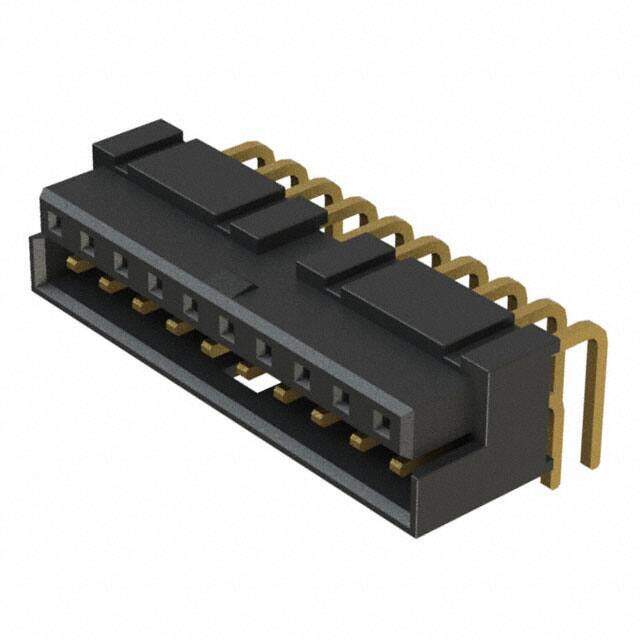

LS2-110-01-L-D-RA1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn Socket and Terminal Strip SKT/HDR 20 POS 2mm Solder RA Thru-Hole Tube
PDF
/
Buying Options
Total Price: USD $7.63
Unit Price: USD $7.6296
≥1 USD $7.6296
≥10 USD $7.0488
≥100 USD $6.6616
≥500 USD $6.424
≥1000 USD $5.984
Inventory: 38
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Bronze
Mounting Type Through Hole, Right Angle
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Packaging Tube
Published 2003
Series LS2
JESD-609 Code e3
Feature Latch Holder
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Self Mating, Non-Gendered
Number of Positions 20
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Receptacle
Additional Feature TIGER BUY CONTACT, MICRO RUGGED, LATCHED, POLARIZED, SHROUDED
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 20
Orientation Right Angle
Depth 10.13mm
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Contact Style SQ PIN-SKT
Body/Shell Style SOCKET
Max Voltage Rating (AC) 475V
Polarization Key ENDS
Contact Pattern RECTANGULAR
Withdrawl Force-Min .834 N
Mating Contact Row Spacing 0.079 inch
Dimensions
Length 21.57mm
Contact Finish Thickness 10.0μin 0.25μm
Plating Thickness 10μin
Height Above Board 0.208 5.28mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
