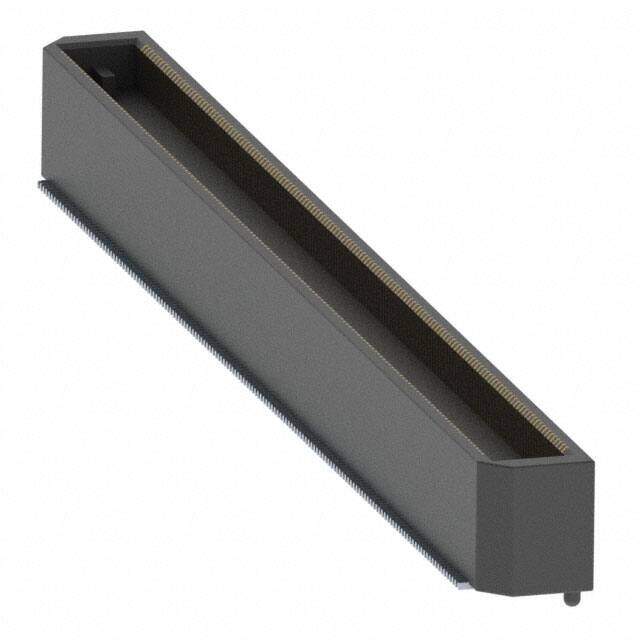

BTH-150-02-C-D-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Rectangular Connector Array
PDF
/
Inventory: 9085
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Stack Height (Mating) 8mm
Height Above Board 0.286 7.26mm
Contact Finish Thickness 50.0μin 1.27μm
Technical
Contact Finish Gold
Pitch 0.020 0.50mm
Number of Rows 2
Number of Positions 300
Connector Type Header, Outer Shroud Contacts
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
JESD-609 Code e3
Series BTH
Packaging Tube
Physical
Mounting Type Surface Mount
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 3 Weeks
