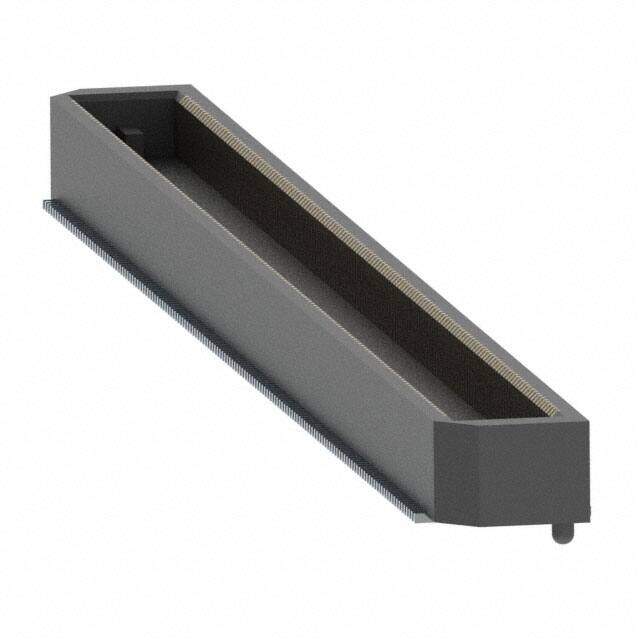

BTH-150-01-L-D-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn Micro Terminal HDR 300 POS 0.5mm Solder ST SMD Automotive
PDF
/
Buying Options
Total Price: USD $17.78
Unit Price: USD $17.776
≥1 USD $17.776
≥10 USD $15.56456
≥100 USD $14.892416
≥500 USD $14.41198
≥1000 USD $13.9315
≥3000 USD $13.162846
Inventory: 126
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Stack Height (Mating) 5mm
Height Above Board 0.168 4.27mm
Plating Thickness 10μin
Contact Finish Thickness 10.0μin 0.25μm
Length 80mm
Technical
Contact Pattern RECTANGULAR
PCB Contact Row Spacing 6.096 mm
Polarization Key POLARIZED HOUSING
Max Current Rating 1.25A
Max Voltage Rating (AC) 125V
Body/Shell Style RECEPTACLE
Contact Style BELLOWED TYPE
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Depth 5.97mm
Orientation Straight
Total Number of Contacts 300
Pitch 0.020 0.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature E.L.P.
Gender Male
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 300
Connector Type Header, Outer Shroud Contacts
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series BTH
Published 2015
Packaging Tube
Physical
Board Mounting Option POSITIONING PIN
Housing Material Polymer
Mounting Type Surface Mount
Contact Material Bronze
Supply Chain
Factory Lead Time 3 Weeks
