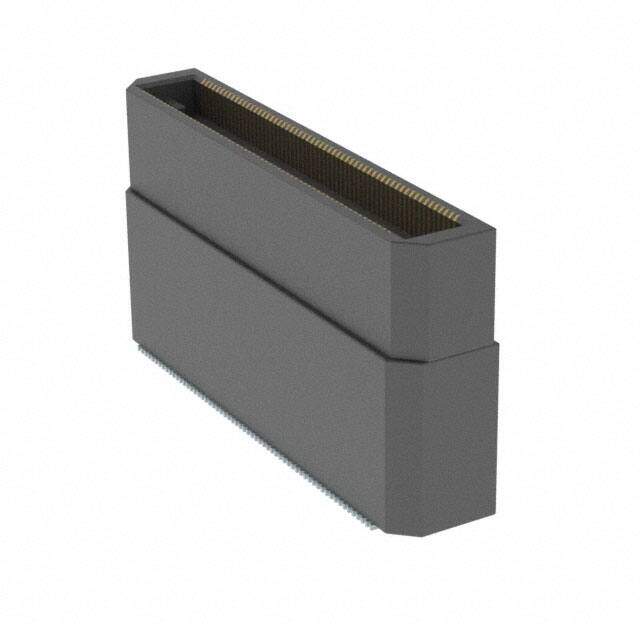

BTH-060-05-L-D image
Favorite
BTH-060-05-L-D image
Favorite

BTH-060-05-L-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description Rectangular Connector Array
PDF
/
Inventory: 5492
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Stack Height (Mating) 19mm
Height Above Board 0.718 18.24mm
Contact Finish Thickness 10.0μin 0.25μm

Technical

UL Flammability Code 94V-0
Mating Information NO
Contact Finish Gold
Total Number of Contacts 120
Pitch 0.020 0.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 2
Number of Positions 120
Connector Type Header, Outer Shroud Contacts
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series BTH
Packaging Tube

Physical

Mounting Type Surface Mount
Contact Material PHOSPHOR BRONZE

Supply Chain

Factory Lead Time 3 Weeks
