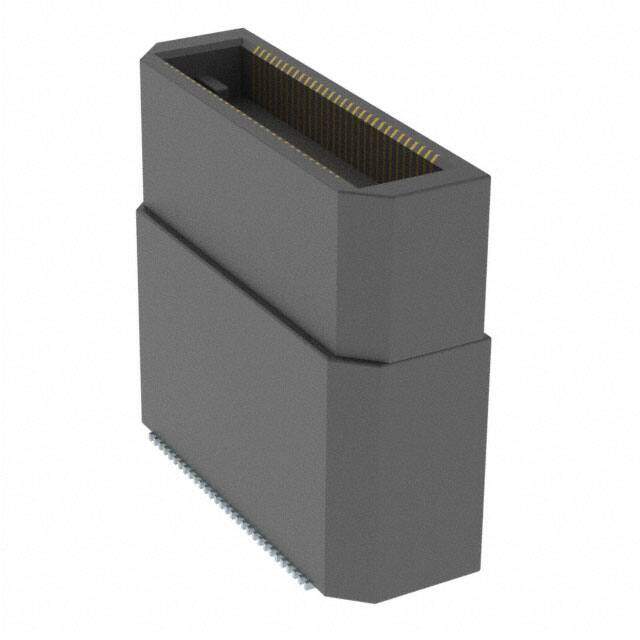

BTH-030-05-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn Micro Terminal HDR 60 POS 0.5mm Solder ST SMD
PDF
/
Buying Options
Total Price: USD $33.23
Unit Price: USD $33.226873
≥1 USD $33.226873
≥216 USD $13.258977
≥504 USD $12.815217
≥1008 USD $12.595963
Inventory: 5227
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tube
Published 2015
Series BTH
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Number of Rows 2
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.020 0.50mm
Total Number of Contacts 60
Contact Finish Gold
Mating Information NO
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Height Above Board 0.718 18.24mm
Stack Height (Mating) 19mm
Compliance
RoHS Status ROHS3 Compliant
