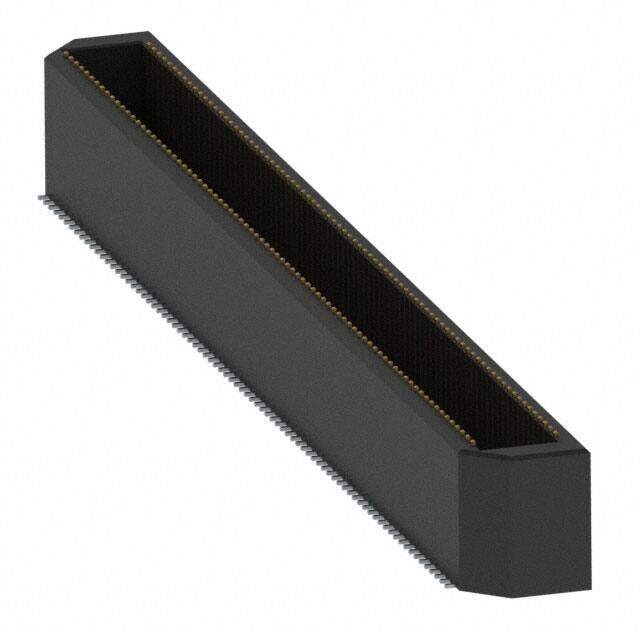

BTE-080-02-C-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Rectangular Connector Array
PDF
/
Inventory: 2472
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tube
Published 2016
Series BTE
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Outer Shroud Contacts
Number of Positions 160
Number of Rows 2
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.031 0.80mm
Total Number of Contacts 160
Contact Finish Gold
Dimensions
Contact Finish Thickness 50.0μin 1.27μm
Height Above Board 0.278 7.06mm
Stack Height (Mating) 8.03mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
