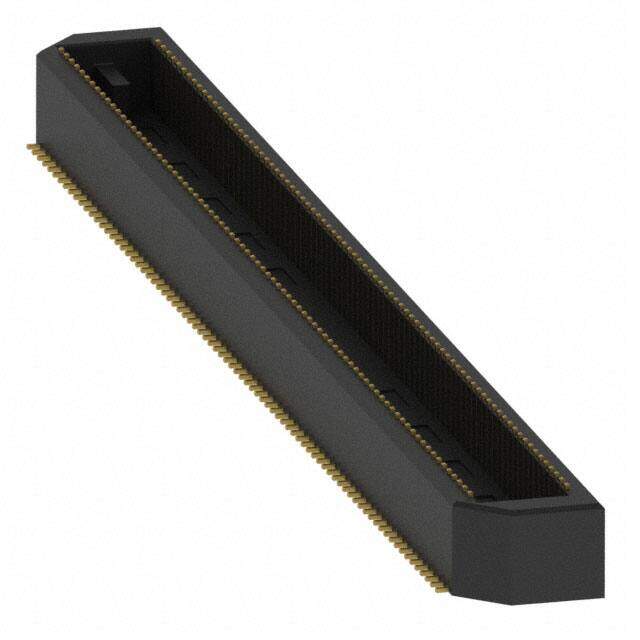

BTE-080-01-H-D image
Favorite
BTE-080-01-H-D image
Favorite

BTE-080-01-H-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description Rectangular Connector Array
PDF
/
Inventory: 3164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Stack Height (Mating) 5.03mm
Height Above Board 0.160 4.06mm
Contact Finish Thickness 30.0μin 0.76μm

Technical

Contact Finish Gold
Total Number of Contacts 160
Pitch 0.031 0.80mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 160
Connector Type Header, Outer Shroud Contacts
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series BTE
Published 2016
Packaging Tube

Physical

Mounting Type Surface Mount
Contact Material PHOSPHOR BRONZE

Supply Chain

Factory Lead Time 3 Weeks
