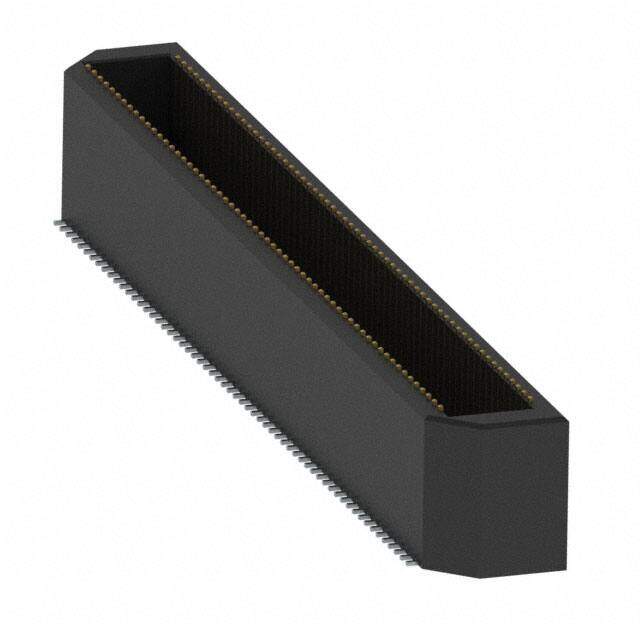

BTE-060-02-L-D-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
TAPE & REEL PACKAGING Rectangular Connector Array
PDF
/
Inventory: 9782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Technical
Packaging Tape & Reel (TR)
Series BTE
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Header, Outer Shroud Contacts
Number of Positions 120
Number of Rows 2
Additional Feature TAPE & REEL PACKAGING
Subcategory Headers and Edge Type Connectors
Pitch 0.031 0.80mm
Total Number of Contacts 120
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Contact Gender MALE
Operating Temperature (Min) -65°C
Rated Current (Signal) 2A
Contact Style BELLOWED TYPE
Body/Shell Style RECEPTACLE
Polarization Key ENDS
PCB Contact Row Spacing 6.096 mm
Contact Pattern RECTANGULAR
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Plating Thickness 10μin
Height Above Board 0.278 7.06mm
Stack Height (Mating) 8.03mm
Compliance
RoHS Status ROHS3 Compliant
