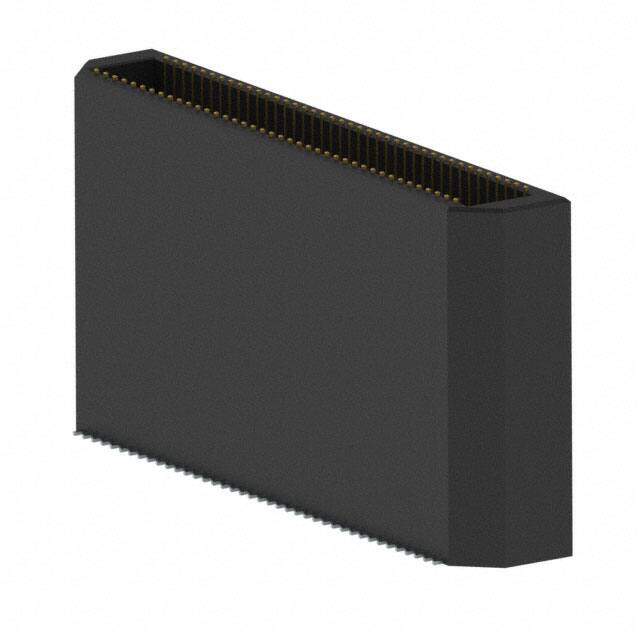

BTE-040-05-F-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn Micro Terminal HDR 80 POS 0.8mm Solder ST SMD
PDF
/
Inventory: 7639
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Technical
Packaging Tube
Published 2009
Series BTE
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Outer Shroud Contacts
Number of Positions 80
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.031 0.80mm
Total Number of Contacts 80
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 1.417 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Min) -65°C
Body Depth 0.718 inch
Rated Current (Signal) 2A
Contact Style BELLOWED TYPE
Body/Shell Style RECEPTACLE
Polarization Key ENDS
PCB Contact Row Spacing 5.969 mm
Contact Pattern RECTANGULAR
Dimensions
Contact Finish Thickness 3.00μin 0.076μm
Plating Thickness FLASH inch
Height Above Board 0.719 18.26mm
Stack Height (Mating) 19.1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
