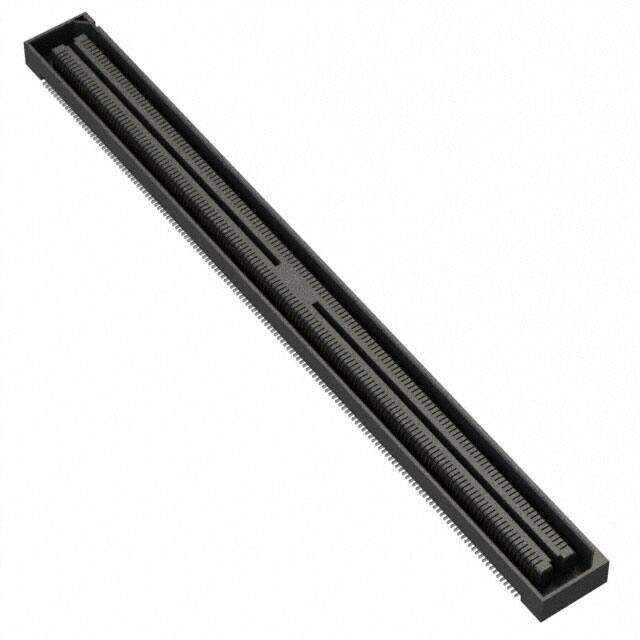

BSH-150-01-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Rectangular Connector Array
PDF
/
Inventory: 3994
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Technical
Packaging Tube
Published 2016
Series BSH
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket, Center Strip Contacts
Number of Positions 300
Number of Rows 2
Gender Female
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.020 0.50mm
Total Number of Contacts 300
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Min) -65°C
UL Flammability Code 94V-0
Polarization Key ENDS
PCB Contact Row Spacing 5.715 mm
Contact Pattern RECTANGULAR
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Plating Thickness 10μin
Height Above Board 0.128 3.25mm
Stack Height (Mating) 5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
