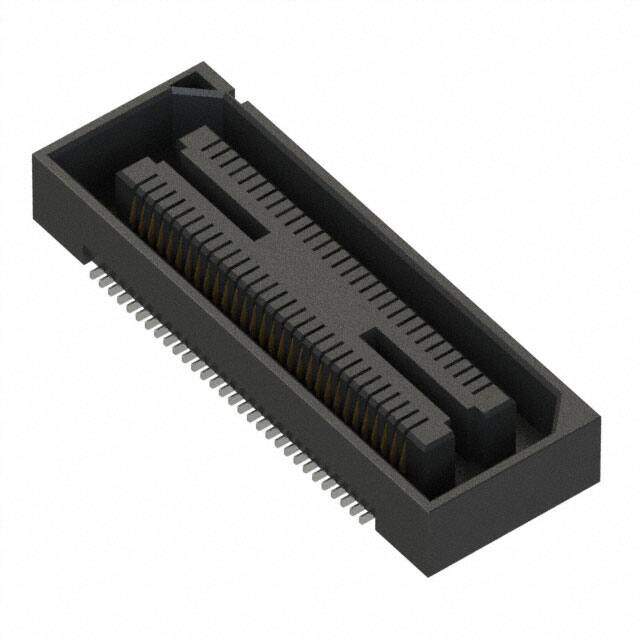

BSH-030-01-C-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Rectangular Connector Array
PDF
/
Inventory: 1693
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tube
Published 2013
Series BSH
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Socket, Center Strip Contacts
Number of Positions 60
Number of Rows 2
Gender Female
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.020 0.50mm
Total Number of Contacts 60
Contact Finish Gold
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness 50.0μin 1.27μm
Height Above Board 0.128 3.25mm
Stack Height (Mating) 5mm
Compliance
RoHS Status ROHS3 Compliant
