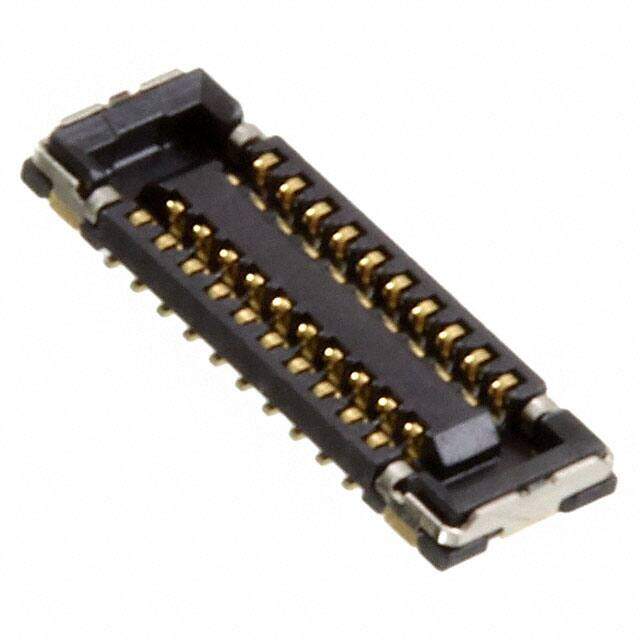

5046182010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 20POS SMD GOLD
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.2904
≥100 USD $0.2816
Inventory: 2614023
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material COPPER ALLOY
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1 LOCKING
Board Mounting Option FITTING NAIL
Technical
Packaging Tape & Reel (TR)
Published 2015
Series SlimStack 504618
Feature Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Pitch 0.014 0.35mm
Total Number of Contacts 20
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Body Breadth 0.079 inch
Contact Gender FEMALE
Operating Temperature (Min) -40°C
Rated Current (Signal) 0.3A
Contact Resistance 80mOhm
Insulation Resistance 100000000Ohm
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 350VAC V
PCB Contact Row Spacing 1.905 mm
Durability 30 Cycles
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Height Above Board 0.024 0.61mm
Stack Height (Mating) 0.6mm
Compliance
RoHS Status ROHS3 Compliant
