5035521620
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description

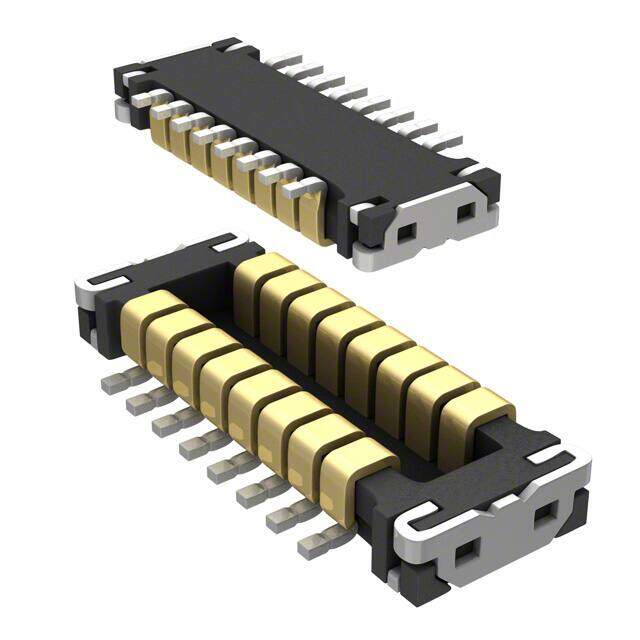

CONN PLUG BTB 16POS DL VERT SMD
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.22528
≥1 USD $0.22528
Inventory: 4828
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material COPPER ALLOY
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1 LOCKING
Board Mounting Option FITTING NAIL
Technical
Packaging Tape & Reel (TR)
Published 2011
Series SlimStack 503552
JESD-609 Code e4
Feature Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 16
Number of Rows 2
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.016 0.40mm
Total Number of Contacts 16
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.183 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.066 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
Rated Current (Signal) 0.3A
Contact Style BELLOWED TYPE
Contact Resistance 80mOhm
Insulation Resistance 100000000Ohm
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 350VDC V
Durability 30 Cycles
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Height Above Board 0.022 0.57mm
Stack Height (Mating) 0.7mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
