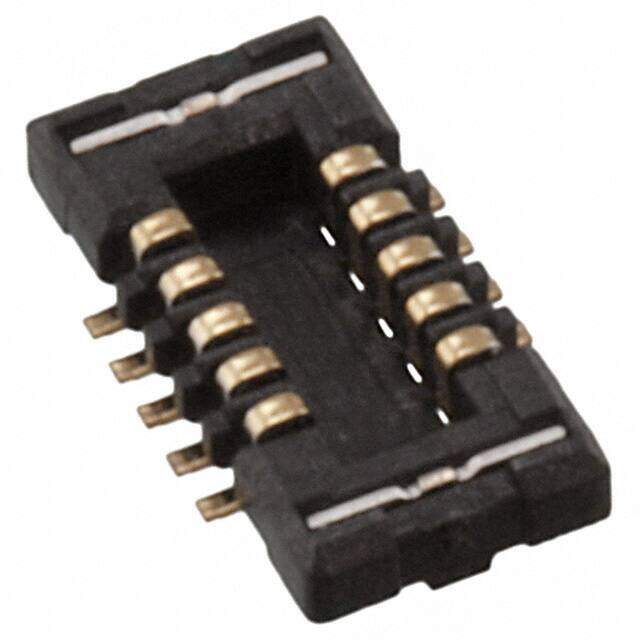

5035521020
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn Board to Board PL 10 POS 0.4mm Solder ST SMD Embossed T/R
PDF
/
Buying Options
Total Price: USD $1.1
Unit Price: USD $1.101612
≥1 USD $1.101612
≥10 USD $1.039256
≥100 USD $0.980426
≥500 USD $0.924927
≥1000 USD $0.872574
Inventory: 1518
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material COPPER ALLOY
Mounting Type Surface Mount
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1 LOCKING
Board Mounting Option FITTING NAIL
Technical
Packaging Tape & Reel (TR)
Published 2014
Series SlimStack 503552
JESD-609 Code e4
Feature Solder Retention
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 10
Number of Rows 2
Subcategory Headers and Edge Type Connectors
Pitch 0.016 0.40mm
Total Number of Contacts 10
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.136 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.066 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
Rated Current (Signal) 0.3A
Contact Style BELLOWED TYPE
Contact Resistance 80mOhm
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 350VDC V
Durability 30 Cycles
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Height Above Board 0.022 0.57mm
Stack Height (Mating) 0.7mm
Compliance
RoHS Status ROHS3 Compliant
