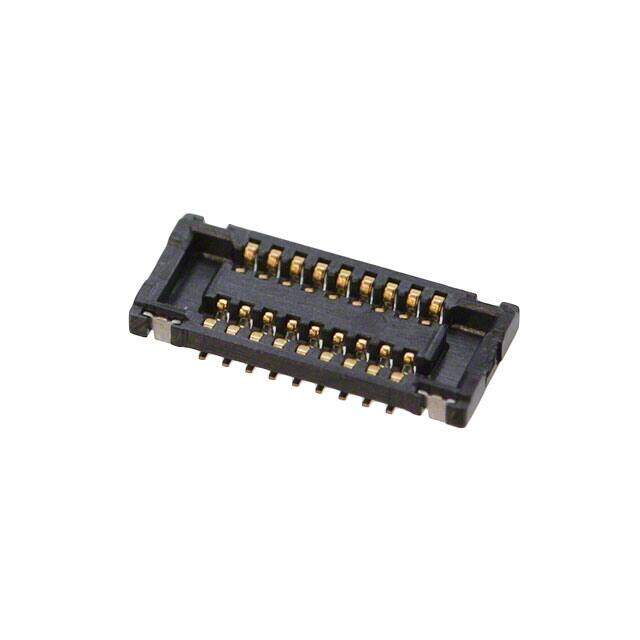

5033041810
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 18POS VERT .4MM SMD
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.539741
≥1 USD $0.539741
≥10 USD $0.509191
≥100 USD $0.480368
≥500 USD $0.453175
≥1000 USD $0.427527
Inventory: 4835
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Polymer
Technical
Packaging Tape & Reel (TR)
Published 2013
Series SlimStack 503304
Feature Solder Retention
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Center Strip Contacts
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.016 0.40mm
Orientation Vertical
Depth 2.6mm
Current Rating 300mA
Contact Finish Gold
Voltage - Rated AC 50V
Number of Contacts 18
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender FEMALE
Housing Color Black
ELV Compliant
Max Voltage Rating (AC) 50V
Halogen Free Low Halogen
Glow Wire Compliant Non-compliant
Dimensions
Length 5.8mm
Height Above Board 0.027 0.68mm
Stack Height (Mating) 0.7mm
Stack Height 700μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
