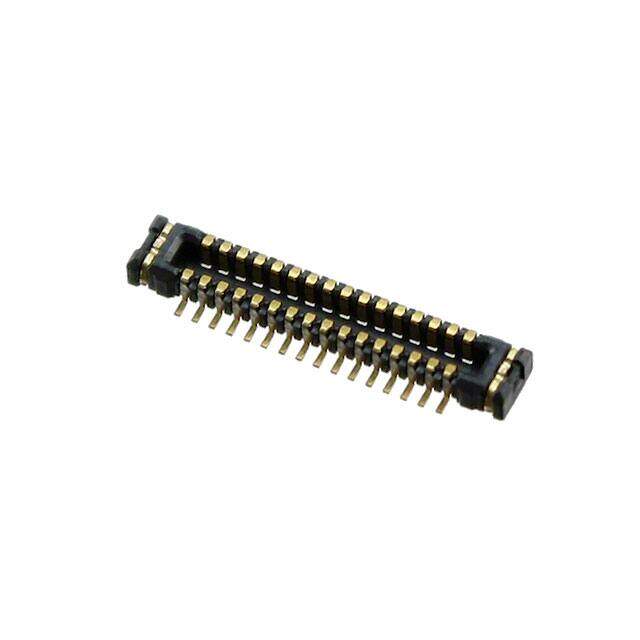

5024303210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
PLUG, 0.4MM, 1MM HEIGHT, 32WAY
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
Inventory: 3066
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Insulation Material GLASS FILLED LIQUID CRYSTAL POLYMER
Mounting Option 1 LOCKING
Board Mounting Option FITTING NAIL
Technical
Packaging Cut Tape (CT)
Published 2015
Series SlimStack 502430
JESD-609 Code e4
Feature Solder Retention
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 32
Number of Rows 2
Additional Feature SLIMSTACK, LOW PROFILE
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.016 0.40mm
Total Number of Contacts 32
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.341 inch
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.081 inch
Contact Gender MALE
UL Flammability Code 94V-0
Body Depth 0.031 inch
Rated Current (Signal) 0.3A
Contact Style BELLOWED TYPE
Contact Resistance 80mOhm
Insulation Resistance 100000000Ohm
PCB Contact Row Spacing 1.7018 mm
Durability 30 Cycles
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Contact Finish Thickness 4.00μin 0.100μm
Plating Thickness 8μin
Height Above Board 0.031 0.80mm
Stack Height (Mating) 1mm
Compliance
RoHS Status ROHS3 Compliant
