5000244071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description

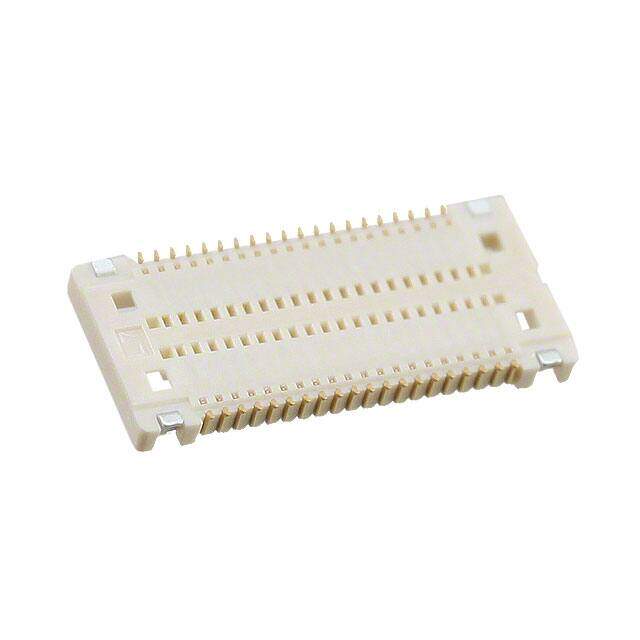

CONN RECPT 40POS 0.4MM GOLD VERT
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.95355
≥1 USD $2.95355
≥10 USD $2.42345
≥100 USD $2.34745
≥500 USD $2.2724
≥1000 USD $2.1964
Inventory: 3609
Minimum: 1
-
+
Technical Details
Physical
Contact Material Bronze
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Thermoplastic
Technical
Packaging Tape & Reel (TR)
Published 2013
Series SlimStack 500024
Feature Solder Retention
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Center Strip Contacts
Number of Positions 40
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Natural
Number of Rows 2
Gender Receptacle
Voltage - Rated 50V
Additional Feature ROHS COMPLIANT & TAPE/REEL PKG
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 50V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.016 0.40mm
Total Number of Contacts 40
Orientation Vertical
Depth 5mm
Current Rating 100mA
Number of Conductors ONE
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.431 inch
Number Of PCB Rows 2
Lead Pitch 400μm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.197 inch
UL Flammability Code 94V-0
Rated Current (Signal) 0.1A
Contact Style BELLOWED TYPE
Contact Resistance 90mOhm
Insulation Resistance 100MOhm
Number of Circuits 34
Max Voltage Rating (AC) 50V
Durability 10 Cycles
Contact Pattern RECTANGULAR
Glow Wire Compliant Non-compliant
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.037 0.95mm
Stack Height (Mating) 0.95mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
