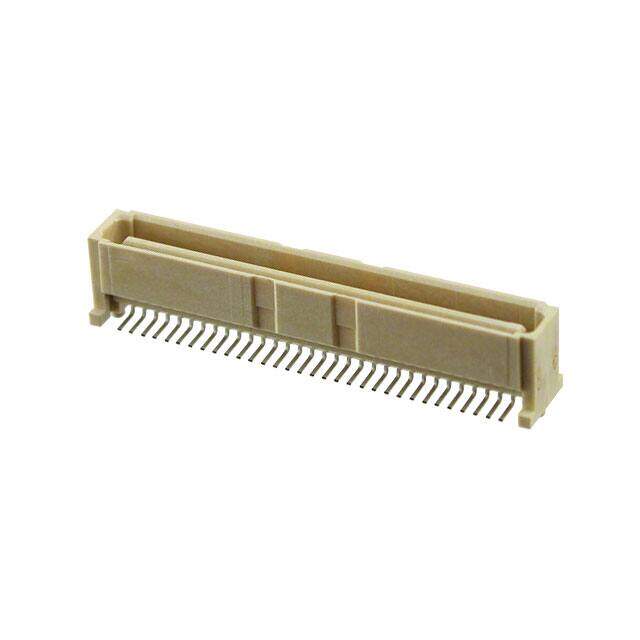

0714361164
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn IEEE 1386 PL 64 POS 1mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $7.25
Unit Price: USD $7.2512
≥1 USD $7.2512
≥10 USD $6.341025
≥100 USD $5.133304
≥500 USD $4.22745
Inventory: 1276
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Surface Mount
Insulation Material HIGH TEMPERATURE THERMOPLASTIC
Board Mounting Option PEG
Technical
Packaging Tube
Series PMC Mezzanine 71436
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Center Strip Contacts
Number of Positions 64
Number of Rows 2
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.039 1.00mm
Total Number of Contacts 64
Number of Conductors ONE
Reference Standard CSA, UL
Contact Finish Gold
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Mating Information MULTIPAL MATING PARTS AVAILBLE
Contact Gender FEMALE
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 1A
Contact Style CENTRONIC
Contact Pattern RECTANGULAR
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Height Above Board 0.289 7.35mm
Stack Height (Mating) 9mm 11mm 14mm
Compliance
RoHS Status ROHS3 Compliant
