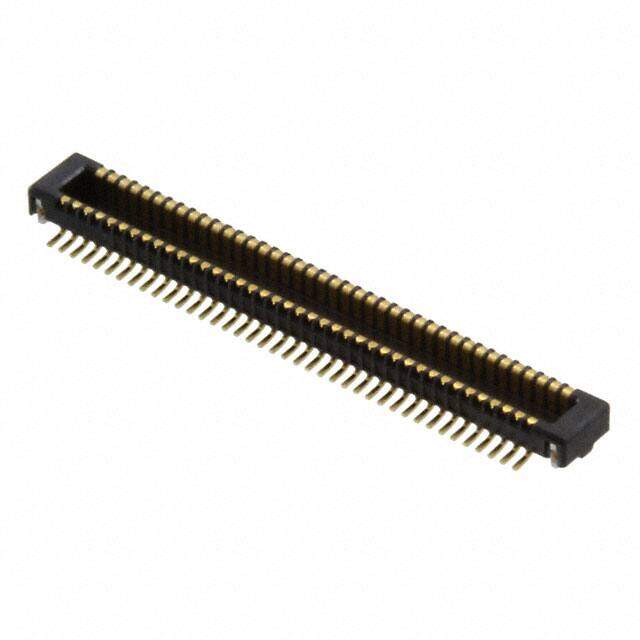

0559090874
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN PLUG 80POS SMD GOLD
PDF
/
Buying Options
Total Price: USD $6.4
Unit Price: USD $6.3976
≥1 USD $6.3976
≥10 USD $5.59592
≥100 USD $4.529712
≥500 USD $3.730346
Inventory: 6159
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material BRASS/PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tape & Reel (TR)
Series SlimStack 55909
JESD-609 Code e4
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 80
Number of Rows 2
Additional Feature SHROUDED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.016 0.40mm
Total Number of Contacts 80
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender MALE
Dimensions
Contact Finish Thickness 8.00μin 0.203μm
Height Above Board 0.045 1.14mm
Stack Height (Mating) 1.5mm
Compliance
RoHS Status ROHS3 Compliant
