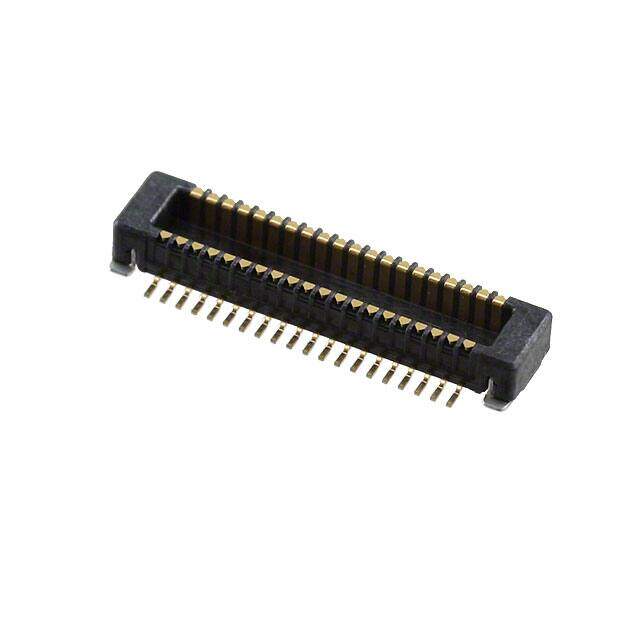

0556500488
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN PLUG 40POS 2MM SMD .5MM
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6104
≥1 USD $1.6104
≥10 USD $1.41856
≥100 USD $1.135024
Inventory: 31338
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material BRASS
Mounting Type Surface Mount
Technical
Packaging Cut Tape (CT)
Series SlimStack 55650
JESD-609 Code e4
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 40
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.020 0.50mm
Total Number of Contacts 40
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender MALE
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Height Above Board 0.063 1.60mm
Stack Height (Mating) 2mm
Compliance
RoHS Status ROHS3 Compliant
