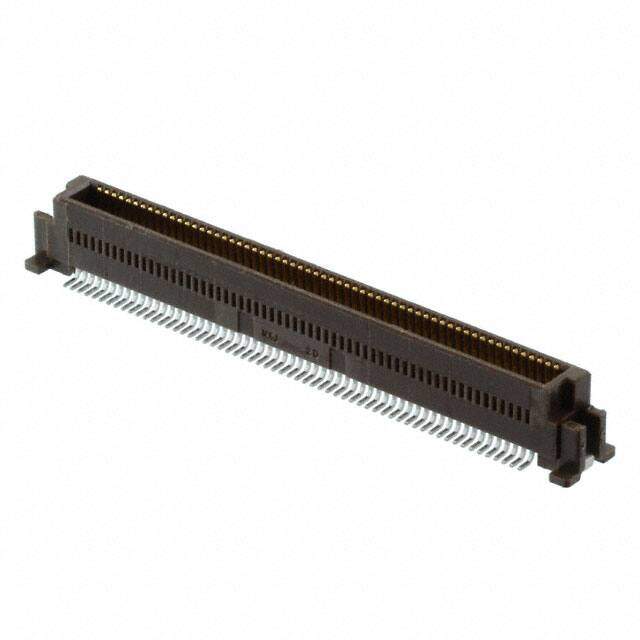

0536251274
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN BTB PLUG 120POS DL VERT SMD
PDF
/
Buying Options
Total Price: USD $6.67
Unit Price: USD $6.6704
≥1 USD $6.6704
≥10 USD $5.79744
≥100 USD $5.10312
Inventory: 1967
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tape & Reel (TR)
Series SlimStack 53625
JESD-609 Code e3
Feature Board Guide, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Outer Shroud Contacts
Number of Positions 120
Number of Rows 2
Additional Feature SHROUDED
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.025 0.64mm
Total Number of Contacts 120
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender MALE
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Height Above Board 0.236 6.00mm
Stack Height (Mating) 7mm 13mm
Compliance
RoHS Status ROHS3 Compliant
