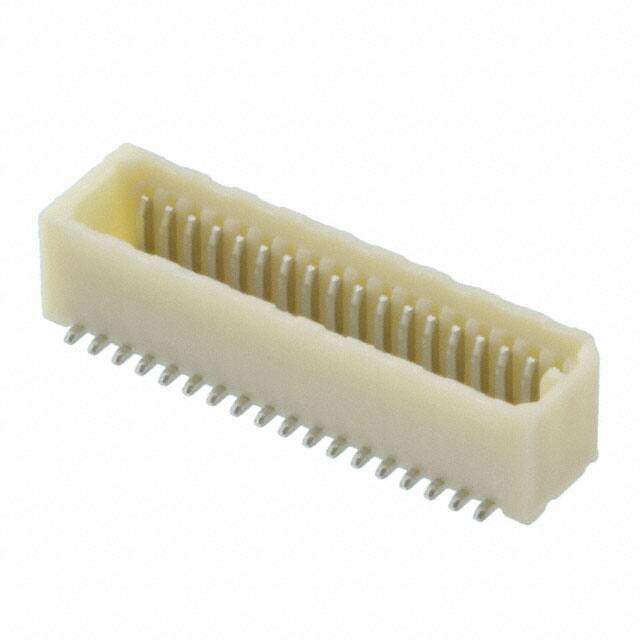

0533073671
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN HDR 36POS SMD TIN
PDF
/
Buying Options
Total Price: USD $3.41
Unit Price: USD $3.4144
≥1 USD $3.4144
≥10 USD $3.00696
≥100 USD $2.391752
Inventory: 4652
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Stack Height (Mating) 4.5mm 5.5mm
Height Above Board 0.144 3.66mm
Contact Finish Thickness 120.0μin 3.05μm
Technical
Contact Gender MALE
Contact Finish Tin
Total Number of Contacts 36
Pitch 0.031 0.80mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature SHROUDED
Number of Rows 2
Number of Positions 36
Connector Type Header, Outer Shroud Contacts
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SlimStack 53307
Packaging Tape & Reel (TR)
Physical
Mounting Type Surface Mount
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 15 Weeks
