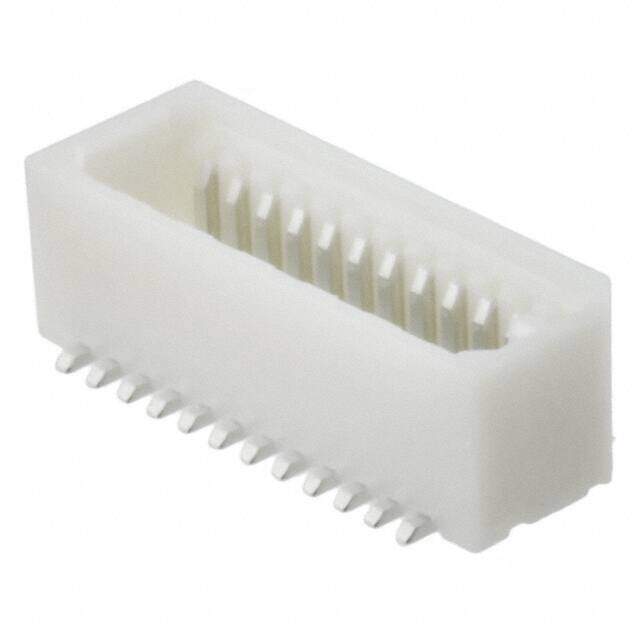

0533072471
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN HDR 24POS SMD TIN
PDF
/
Buying Options
Total Price: USD $2.39
Unit Price: USD $2.3936
≥1 USD $2.3936
≥10 USD $2.1032
≥100 USD $1.672704
Inventory: 6068
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tape & Reel (TR)
Series SlimStack 53307
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Number of Rows 2
Additional Feature SHROUDED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.031 0.80mm
Total Number of Contacts 24
Contact Finish Tin
Contact Gender MALE
Dimensions
Contact Finish Thickness 120.0μin 3.05μm
Height Above Board 0.144 3.66mm
Stack Height (Mating) 4.5mm 5.5mm
Compliance
RoHS Status ROHS3 Compliant
