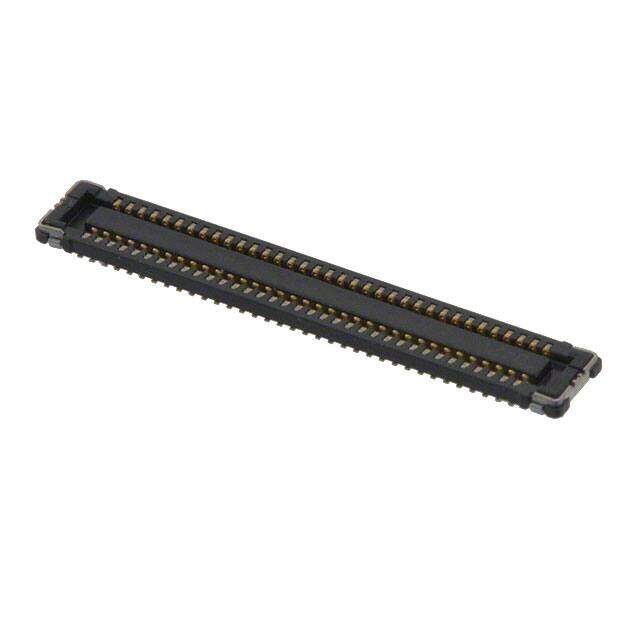

WP7B-S070VA1-R500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 0.4MM 70POS DUAL SMD
PDF
/
Inventory: 4263
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Plastic
Technical
Packaging Cut Tape (CT)
Published 2011
Series WP7
Feature Solder Retention
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Connector Type Receptacle, Center Strip Contacts
Number of Positions 70
Number of Rows 2
Voltage - Rated 50V
Pitch 0.016 0.40mm
Current Rating 200mA
Contact Finish Gold
Insulation Resistance 100MOhm
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.028 0.71mm
Stack Height (Mating) 0.7mm
Compliance
RoHS Status RoHS Compliant
