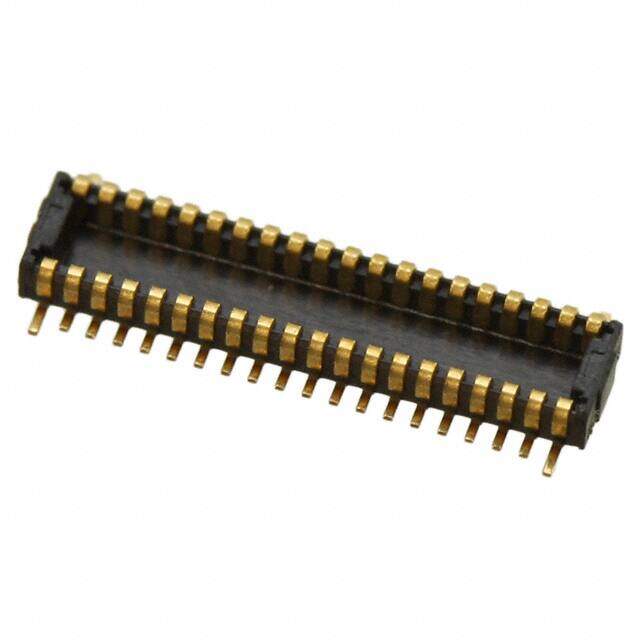

WP3-P036VA1-R6000
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN PLUG VERT 36POS 0.4MM GOLD
PDF
/
Inventory: 5009
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Technical
Packaging Tape & Reel (TR)
Published 2011
Series WP3
Feature Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 36
Number of Rows 2
Pitch 0.016 0.40mm
Contact Finish Gold
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.033 0.84mm
Stack Height (Mating) 1mm
Compliance
RoHS Status RoHS Compliant
