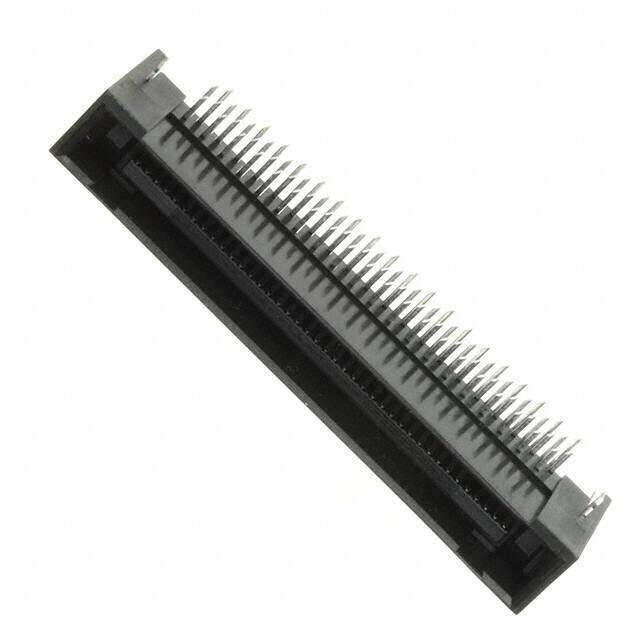

TX25-80P-LT-H1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN PLUG 1.27MM 80POS GOLD R/A
PDF
/
Buying Options
Total Price: USD $2.45
Unit Price: USD $2.4464
≥1 USD $2.4464
≥10 USD $2.21936
≥100 USD $2.102144
≥500 USD $2.05304
≥1000 USD $1.95536
≥3000 USD $1.710931
Inventory: 707
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material PBT
Technical
Packaging Tray
Published 2000
Series TX25
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Connector Type Plug, Center Strip Contacts
Number of Positions 80
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Number of Rows 2
Gender Male
Voltage - Rated 500V
Pitch 0.050 1.27mm
Orientation Right Angle
Current Rating 1A
Contact Finish Gold
Lead Pitch 1.27mm
Housing Color Black
Insulation Resistance 100MOhm
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.354 9.00mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
