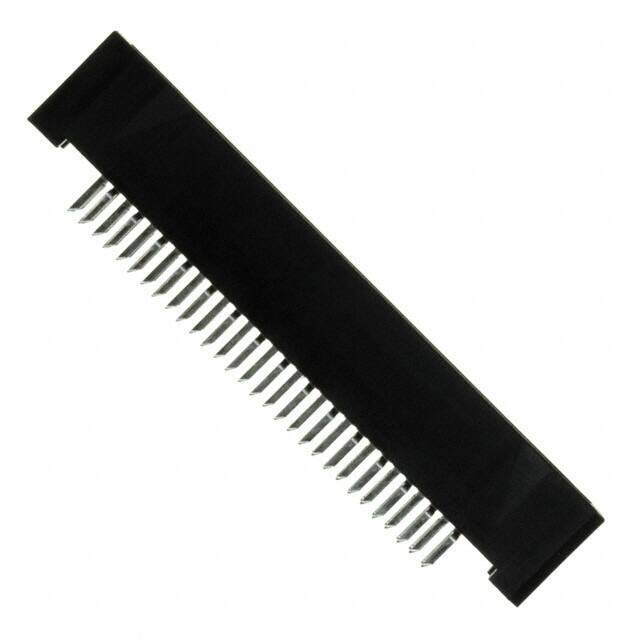

TX25-60P-6ST-N1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN PLUG 1.27MM 60POS GOLD PCB
PDF
/
Inventory: 6807
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material PBT
Technical
Packaging Tray
Published 2008
Series TX25
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Connector Type Plug, Center Strip Contacts
Number of Positions 60
Number of Rows 2
Voltage - Rated 500V
Pitch 0.050 1.27mm
Current Rating 1A
Contact Finish Gold
Lead Pitch 1.27mm
Housing Color Black
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.362 9.20mm
Stack Height (Mating) 12mm 16mm 18mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
