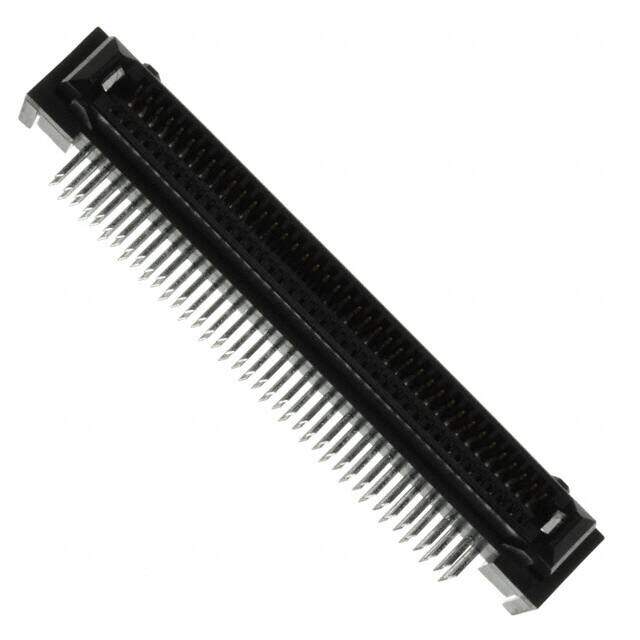

TX24-80R-LT-N1E image
Favorite
TX24-80R-LT-N1E image
Favorite

TX24-80R-LT-N1E

JAE Electronics
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description CONN RCPT 1.27MM 80POS GOLD R/A
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.018618
≥1 USD $2.018618
≥10 USD $1.904356
≥100 USD $1.796563
≥500 USD $1.694871
≥1000 USD $1.598934
Inventory: 9559
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Height Above Board 0.354 9.00mm
Contact Finish Thickness 3.94μin 0.10μm

Technical

Insulation Resistance 100MOhm
Housing Color Black
Lead Pitch 1.27mm
Contact Finish Gold
Current Rating 1A
Pitch 0.050 1.27mm
Voltage - Rated 500V
Number of Rows 2
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Number of Positions 80
Connector Type Receptacle, Outer Shroud Contacts
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TX24
Published 2003
Packaging Tray

Physical

Housing Material PBT
Mounting Type Through Hole, Right Angle
Mount Through Hole

Supply Chain

Factory Lead Time 14 Weeks
