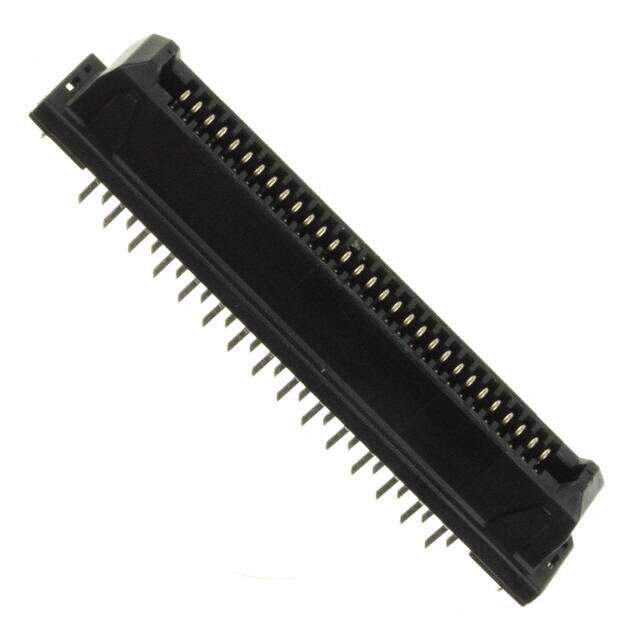

TX24-60R-6ST-H1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 1.27MM 60POS GOLD PCB
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.452
≥1 USD $1.452
≥10 USD $1.2628
≥100 USD $1.20912
≥500 USD $1.18206
≥1000 USD $1.12838
≥3000 USD $1.020914
Inventory: 2600
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Housing Material PBT
Technical
Packaging Tray
Published 2000
Series TX24
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 60
Number of Rows 2
Gender Receptacle
Voltage - Rated 500V
Pitch 0.050 1.27mm
Orientation Straight
Current Rating 1A
Contact Finish Gold
Lead Pitch 1.27mm
Housing Color Black
Contact Resistance 40mOhm
Insulation Resistance 100MOhm
Row Spacing 1.905 mm
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.406 10.30mm
Stack Height (Mating) 12mm 14mm 18mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
