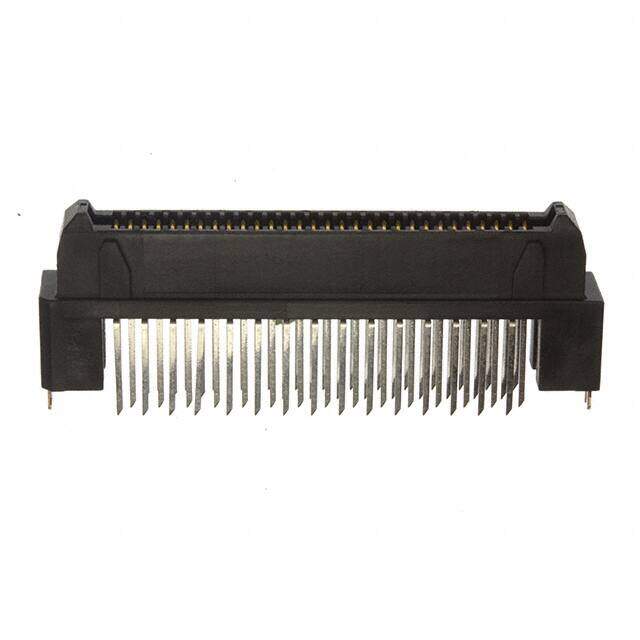

TX24-60R-12ST-E1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 1.27MM 60POS GOLD PCB
PDF
/
Inventory: 5127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Stack Height (Mating) 18mm 20mm 24mm
Height Above Board 0.642 16.30mm
Contact Finish Thickness 3.94μin 0.10μm
Technical
Insulation Resistance 100MOhm
Housing Color Black
Lead Pitch 1.27mm
Contact Finish Gold
Current Rating 1A
Pitch 0.050 1.27mm
Voltage - Rated 500V
Number of Rows 2
Number of Positions 60
Connector Type Receptacle, Outer Shroud Contacts
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock
Series TX24
Published 2006
Packaging Tray
Physical
Housing Material PBT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
