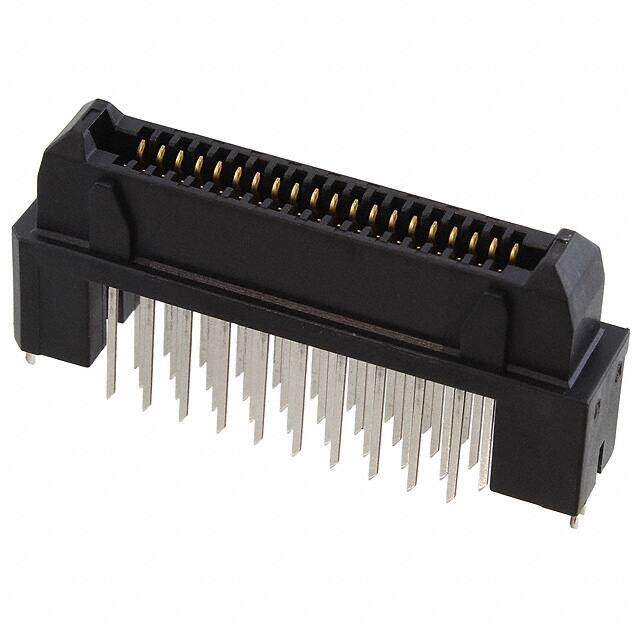

TX24-40R-12ST-E1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Board to Board & Mezzanine Connectors 40P recept Straight
PDF
/
Inventory: 1557
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material PBT
Technical
Packaging Tray
Published 2006
Series TX24
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 40
Number of Rows 2
Voltage - Rated 500V
Pitch 0.050 1.27mm
Current Rating 1A
Contact Finish Gold
Insulation Resistance 100MOhm
Dimensions
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.642 16.30mm
Stack Height (Mating) 18mm 20mm 24mm
Compliance
RoHS Status RoHS Compliant
