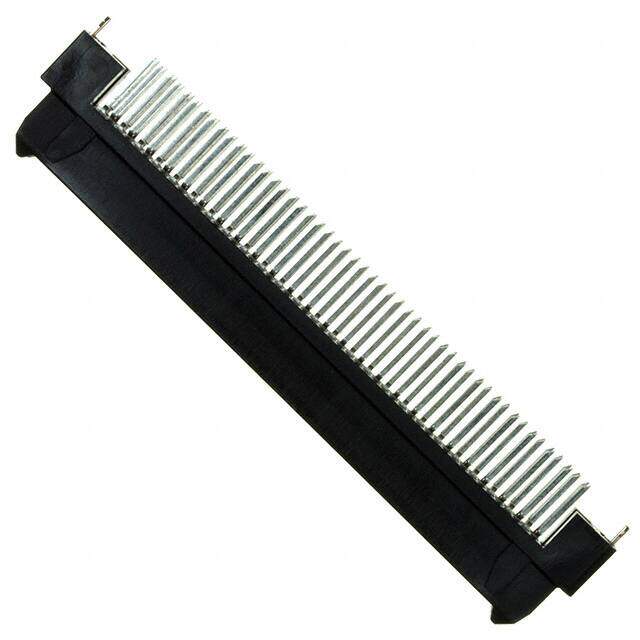

TX24-100R-10ST-E1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 1.27MM 100POS GOLD PCB
PDF
/
Inventory: 9769
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material PBT
Technical
Packaging Tray
Published 2006
Series TX24
Feature Board Lock
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 100
Number of Rows 2
Voltage - Rated 500V
Pitch 0.050 1.27mm
Current Rating 1A
Contact Finish Gold
Lead Pitch 1.27mm
Housing Color Black
Insulation Resistance 100MOhm
Dimensions
Height 10.3mm
Length 76.1mm
Width 8mm
Contact Finish Thickness 3.94μin 0.10μm
Height Above Board 0.563 14.30mm
Stack Height (Mating) 16mm 18mm 22mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
