PM1F050NSA
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN RCPT 0.8MM 50POS R/A AU PCB
PDF
/
Inventory: 3804
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

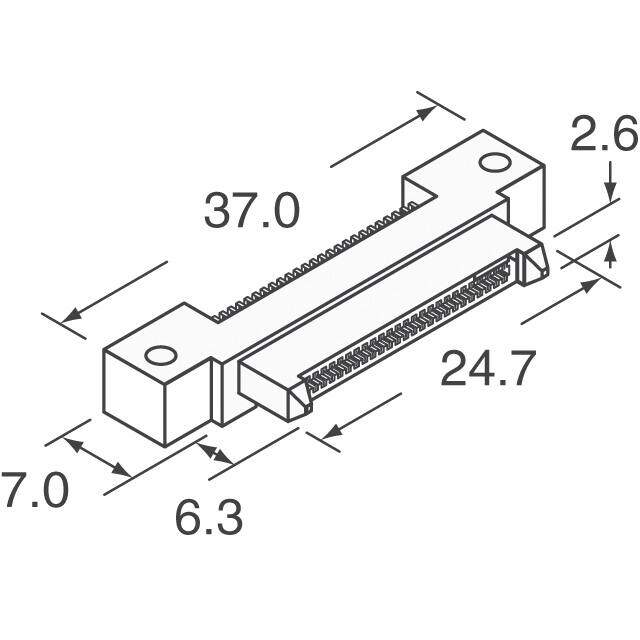

Dimensions
Height Above Board 0.213 5.40mm
Contact Finish Thickness 3.94μin 0.10μm
Width 7mm
Length 37mm
Height 5.4mm
Technical
Housing Color Black
Number of Contacts 50
Lead Pitch 800μm
Contact Finish Gold
Pitch 0.031 0.80mm
Number of Rows 2
Number of Positions 50
Connector Type Receptacle, Outer Shroud Contacts
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide
Series PM1
Published 2006
Packaging Tray
Physical
Housing Material Plastic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
