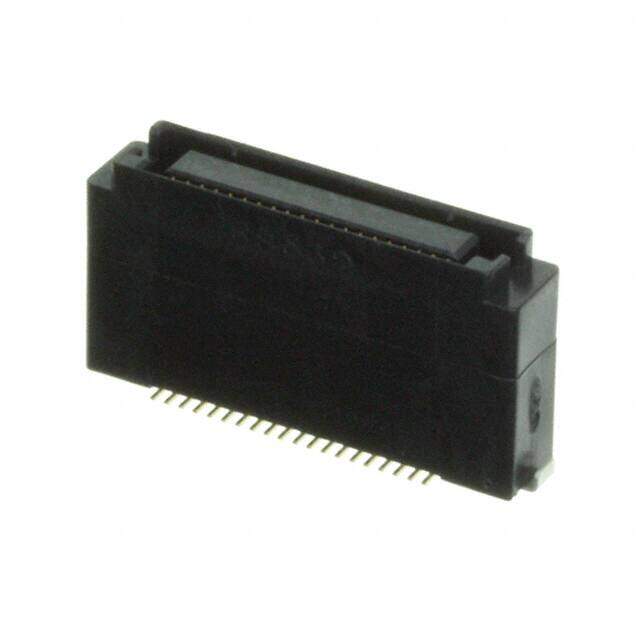

KX14-40K11DE image
Favorite
KX14-40K11DE image
Favorite

KX14-40K11DE

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description CONN RCPT 0.8MM 40POS SMD GOLD
PDF
/
Inventory: 9197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Stack Height (Mating) 13mm 14mm 15mm
Contact Finish Thickness 3.94μin 0.10μm
Width 5mm
Length 24mm
Height 12.6mm

Technical

Housing Color Black
Number of Contacts 40
Lead Pitch 800μm
Contact Finish Gold
Pitch 0.031 0.80mm
Number of Rows 2
Number of Positions 40
Connector Type Receptacle, Outer Shroud Contacts
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide, Solder Retention
Series KX14
Published 2004
Packaging Tray

Physical

Housing Material Plastic
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold

Supply Chain

Factory Lead Time 12 Weeks
