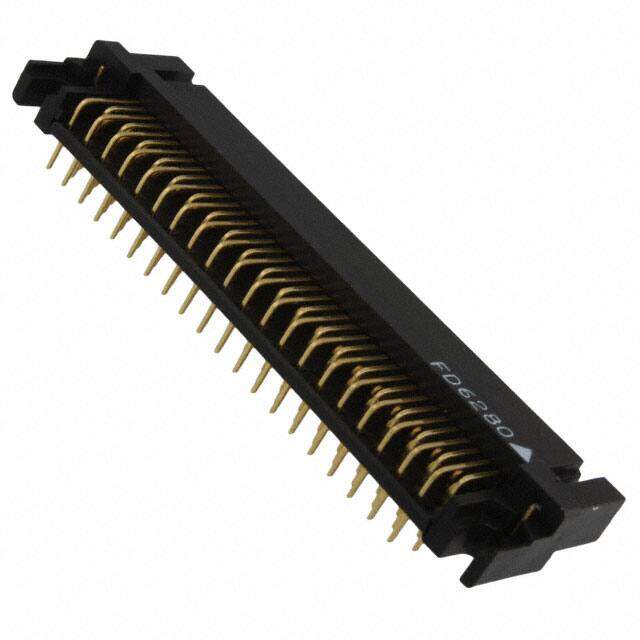

P50-080SG-SR1-EA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN SOCKET 80POS R/A .050 GOLD
PDF
/
Buying Options
Total Price: USD $8.1
Unit Price: USD $8.096
≥1 USD $8.096
≥10 USD $7.172554
≥100 USD $6.896727
≥500 USD $6.6209
≥1000 USD $6.475867
Inventory: 334
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Above Board 0.275 6.99mm
Contact Finish Thickness 10.0μin 0.25μm
Length 63.53mm
Technical
Contact Finish Gold
Current Rating 2A
Depth 17.9mm
Orientation Right Angle
Pitch 0.050 1.27mm
Gender Female
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 85°C
Number of Positions 80
Connector Type Socket, Outer Shroud Contacts
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Ground Pin
Series Pak 50, P50
Published 2007
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
