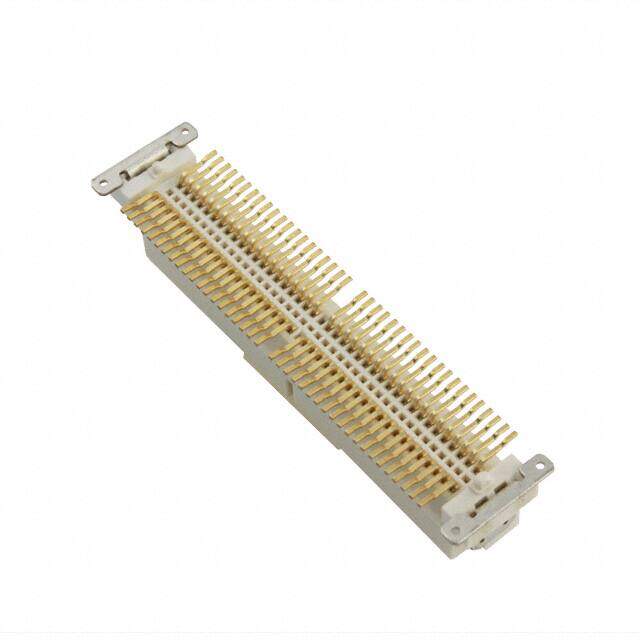

P08-080HLC-E-G
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
CONN SELF-MATE 80POS SMD GOLD
PDF
/
Inventory: 9739
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Polymer
Technical
Packaging Tube
Published 2009
Series P08
Feature Board Guide, Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Self Mating, Non-Gendered
Number of Positions 80
Max Operating Temperature 85°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Female
Pitch 0.031 0.80mm
Orientation Straight
Depth 9mm
Contact Finish Gold
Number of Contacts 80
Housing Color Natural
Max Current Rating 500mA
Dimensions
Length 39.7mm
Contact Finish Thickness 8.00μin 0.203μm
Height Above Board 0.329 8.35mm
Stack Height (Mating) 11.5mm
Compliance
RoHS Status RoHS Compliant
