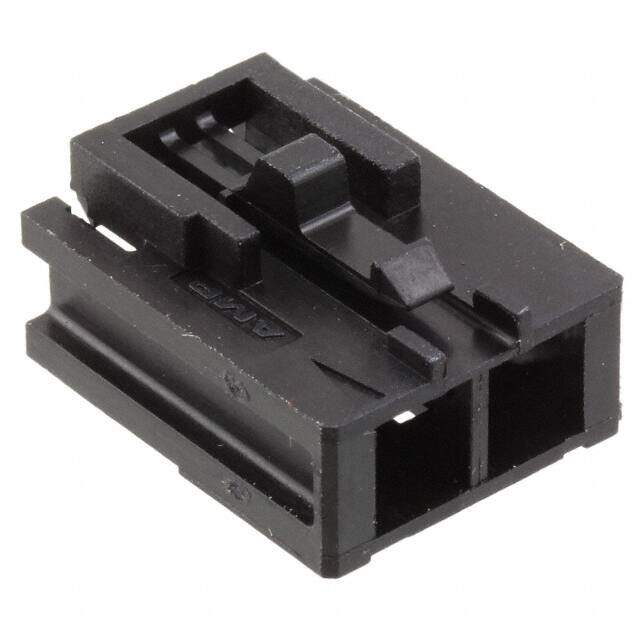

103681-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Accessories
Description
Headers & Wire Housings SHROUD COUPLING 8P
PDF
/
Inventory: 9671
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 14.85mm
Technical
Mating Alignment With
Contact Current Rating 3A
Accessory Type Shroud
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 30 AWG
Max Current Rating 3A
ELV Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Current Rating 3A
Depth 18.66mm
Orientation Straight
Pitch 2.54mm
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type BOARD CONNECTOR
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Latch Lock
Series AMPMODU MTE
Published 2008
Physical
Housing Material Thermoplastic
Mount Cable
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 10 Weeks
