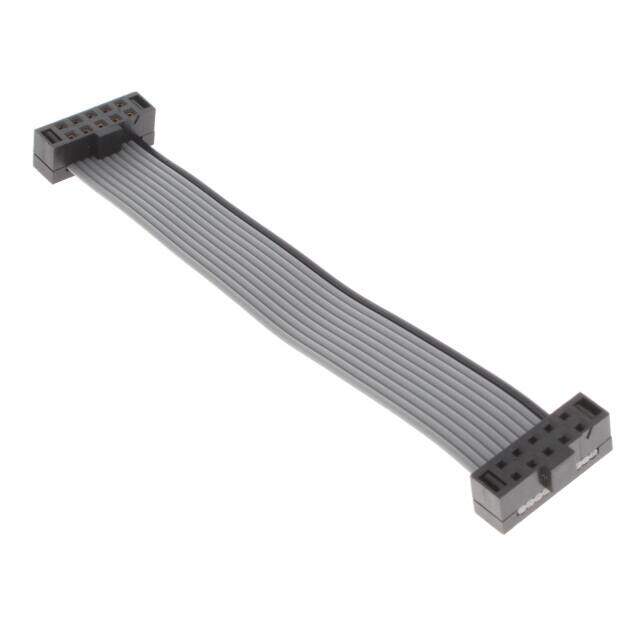

TCSD-05-D-03.00-01-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Rectangular Cable Assemblies
Description
Cable Assembly Flat Ribbon 0.076m 28AWG IDC Connector to IDC Connector 10 to 10 POS SKT-SKT IDT-IDT Bulk
PDF
/
Buying Options
Total Price: USD $8.74
Unit Price: USD $8.7384
≥1 USD $8.7384
≥10 USD $8.0784
≥100 USD $7.6384
≥500 USD $7.3568
≥1000 USD $6.028
≥3000 USD $5.643
Inventory: 480
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper
Technical
Packaging Bulk
Series Tiger Eye? TCSD
JESD-609 Code e3
Feature Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Socket to Socket
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Gray, Ribbon
Number of Rows 2
Gender Female
Shielding Unshielded
Contact Finish Gold
Wire/Cable Type Flat Flex
Cable Length 76.2mm
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Pitch - Connector 0.079 2.00mm
Pitch - Cable 0.039 1.00mm
Connector Type A Connector, IDC
Connector Type B Connector, IDC
Dimensions
Length 0.250' 76.20mm 3.00
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
