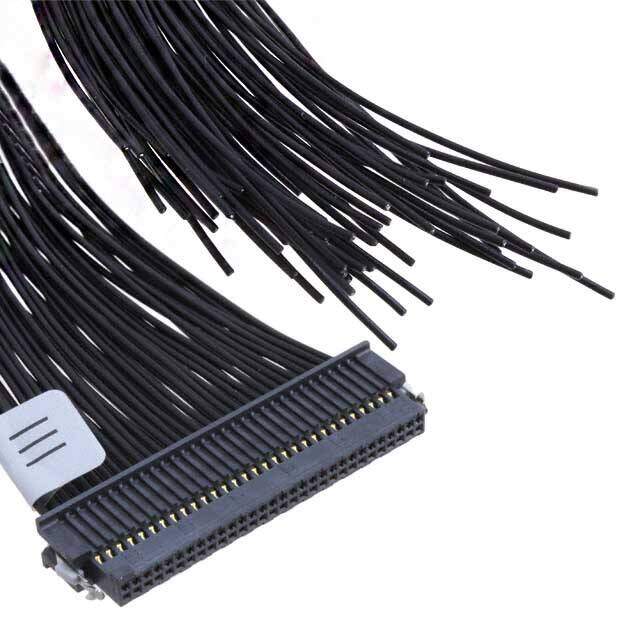

SFSD-30-28-H-10.00-SR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Rectangular Cable Assemblies
Description
CABLE ASSY SOCKET 60POS 28AWG
PDF
/
Buying Options
Total Price: USD $22.68
Unit Price: USD $22.6776
≥1 USD $22.6776
≥10 USD $21.472
≥100 USD $20.6624
≥500 USD $20.1608
≥1000 USD $17.388888
≥3000 USD $16.473635
Inventory: 167
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Length 0.833' 254.00mm 10.00
Technical
Pitch - Connector 0.050 1.27mm
Mating Contact Row Spacing 0.05 inch
Cable Termination Crimp
Contact Pattern RECTANGULAR
Cable Length 254mm
Wire/Cable Type Discrete
Mating Contact Pitch 0.05 inch
Contact Style SQ PIN-SKT
Body Depth 0.44 inch
Operating Temperature (Min) -10°C
Operating Temperature (Max) 80°C
Reliability COMMERCIAL
Contact Finish Gold
Shielding Unshielded
Total Number of Contacts 60
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature LATCHED
Gender Female
Number of Rows 2
Color Black, Individual
Number of Positions 60
Connector Type Socket to Individual Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Latch Lock, Polarizing Key
JESD-609 Code e4
Series Tiger Eye? SFSD
Packaging Bulk
Physical
Mounting Style STRAIGHT
Mounting Type CABLE
Contact Material BERYLLIUM COPPER
Supply Chain
Factory Lead Time 3 Weeks
