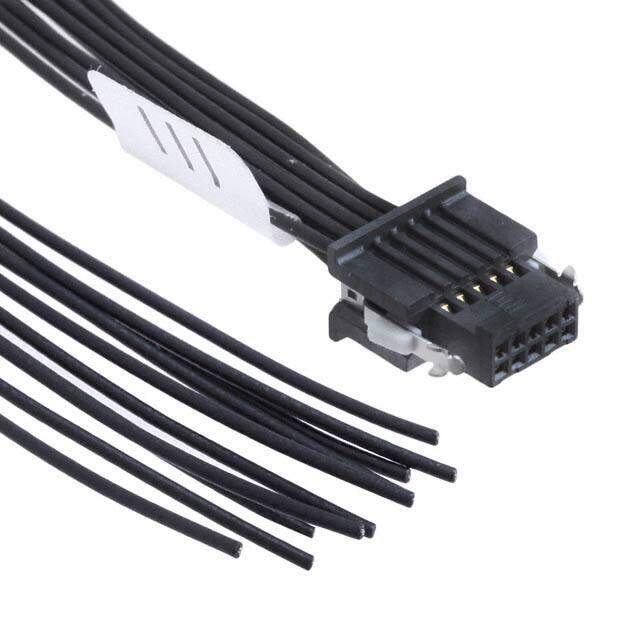

SFSD-05-28-H-05.00-SR image
Favorite
SFSD-05-28-H-05.00-SR image
Favorite

SFSD-05-28-H-05.00-SR

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description CABLE ASSY SOCKET 10POS 28AWG
PDF
/
Buying Options
Total Price: USD $3.87
Unit Price: USD $3.872
≥1 USD $3.872
≥10 USD $3.5024
≥100 USD $3.2472
≥500 USD $3.0976
≥1000 USD $2.7016
≥3000 USD $2.578409
Inventory: 490
Minimum: 1
-
+

Technical Details

Physical

Contact Material BERYLLIUM COPPER
Mounting Type CABLE
Mounting Style STRAIGHT

Technical

Packaging Bulk
Series Tiger Eye? SFSD
JESD-609 Code e4
Feature Latch Lock, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket to Individual Wire Leads
Number of Positions 10
Color Black, Individual
Number of Rows 2
Gender Female
Additional Feature LATCHED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 10
Shielding Unshielded
Contact Finish Gold
Reliability COMMERCIAL
Operating Temperature (Max) 80°C
Body Depth 0.44 inch
Contact Style SQ PIN-SKT
Mating Contact Pitch 0.05 inch
Wire/Cable Type Flat Flex
Cable Length 127mm
Contact Pattern RECTANGULAR
Cable Termination Crimp
Mating Contact Row Spacing 0.05 inch
Pitch - Connector 0.050 1.27mm

Dimensions

Length 0.417' 127.00mm 5.00
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
