G125-MC10605L4-0150L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Rectangular Cable Assemblies
Description

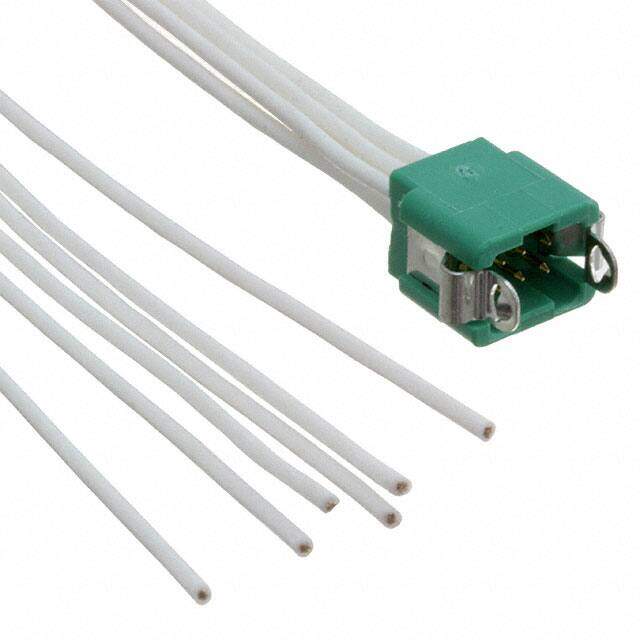

Ribbon Cables / IDC Cables 1.25MM M/L CA 2X3 150MM 26AWG
PDF
/
Buying Options
Total Price: USD $18.18
Unit Price: USD $18.1808
≥1 USD $18.1808
≥10 USD $15.7608
≥100 USD $14.93771
≥500 USD $14.721344
≥1000 USD $12.989328
≥3000 USD $12.123408
Inventory: 217
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 8μin
Technical
Mating Contact Row Spacing 0.05 inch
Contact Pattern RECTANGULAR
Durability 1000 Cycles
Cable Length 150mm
Polarization Key POLARIZED HOUSING
Termination Type CRIMP
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
Contact Resistance 25mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 2A
Body Depth 0.259 inch
Contact Gender MALE
Body Breadth 0.193 inch
Operating Temperature (Max) 150°C
Body Length or Diameter 0.248 inch
Reliability COMMERCIAL
Reference Standard UL
Total Number of Contacts 6
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Color White
Connector Type BOARD CONNECTOR
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2015
Physical
Mounting Option 2 LATCH
Mounting Option 1 LOCKING
Number of Pins 6
Mounting Type CABLE
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 13 Weeks
