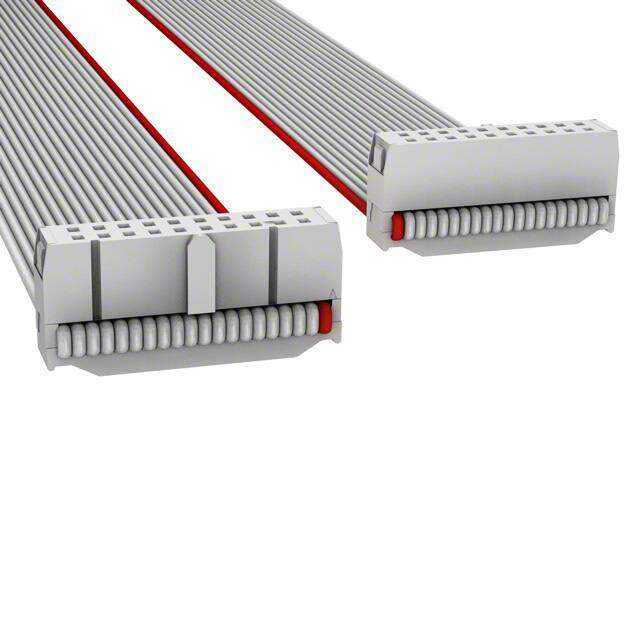

H3DDH-2006G image
Favorite
H3DDH-2006G image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cable Assemblies / Rectangular Cable Assemblies
Description IDC CBL- HHKR20H/AE20G/HHKR20H
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.08416
≥100 USD $1.038048
≥500 USD $1.014992
≥1000 USD $0.96888
≥3000 USD $0.876621
Inventory: 568
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 15.0μin 0.38μm
Length 0.500' 152.40mm 6.00

Technical

Pitch - Cable 0.050 1.27mm
Pitch - Connector 0.100 2.54mm
Cable Termination IDC
Number of Contacts 20
Contact Finish Gold
Shielding Unshielded
Number of Rows 2
Color Gray, Ribbon
Number of Positions 20
Connector Type Socket to Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Polarizing Key, Strain Relief
Published 2011

Physical

Mount Cable
Contact Plating Gold
